The SOLLEKTOR combines the latest technology with the enjoyment of sunlight. It is an intelligent lighting system that directs natural daylight into buildings. With a SOLLEKTOR almost all rooms can be supplied with sunlight. The highly efficient light-collecting optics and the flexible fiber-optic cable specially developed for the SOLLEKTOR ensure that even a basement room shines in sunshine.

Operating Principle

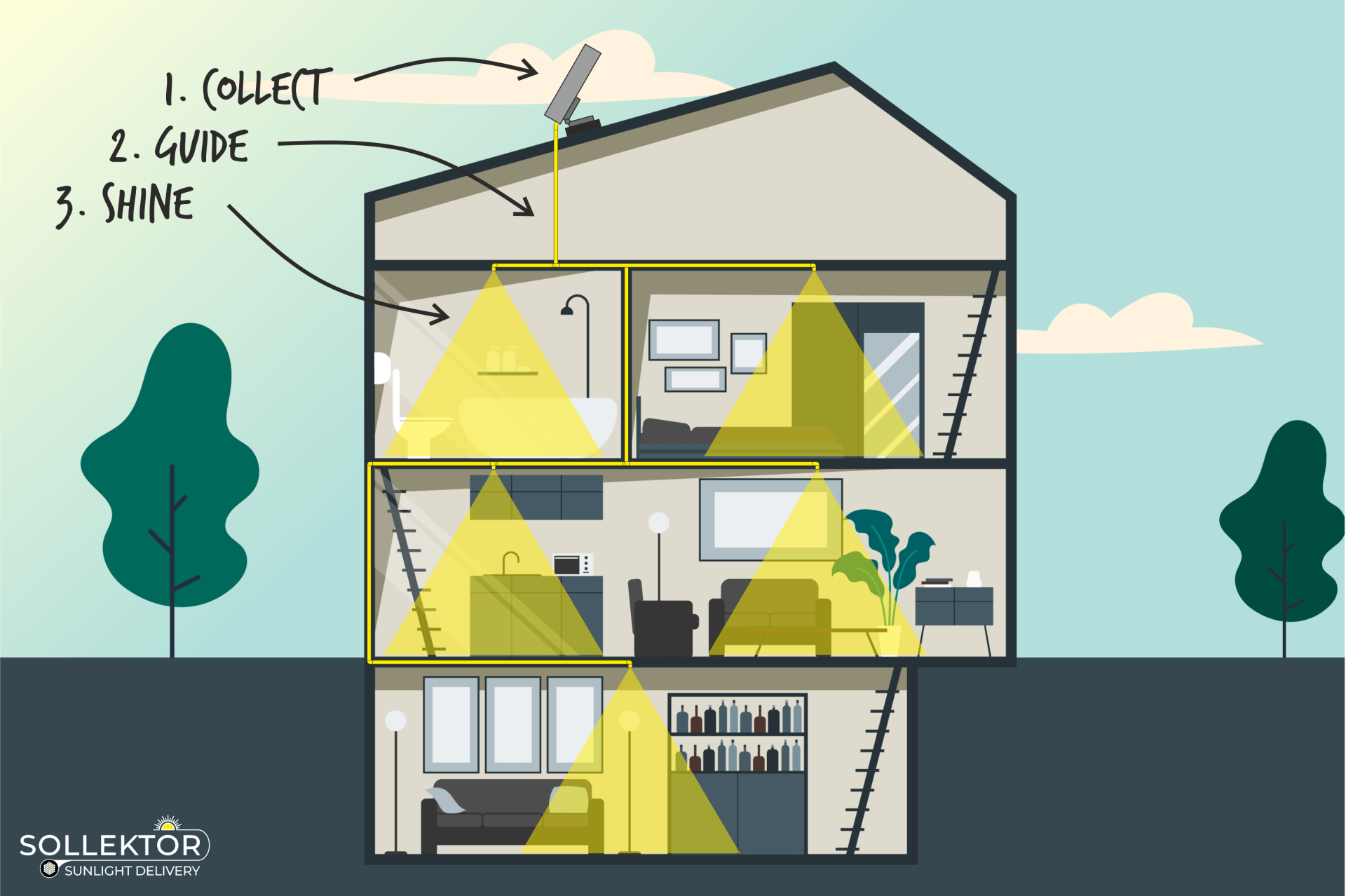

Our system consists of three modules: the light collector, the light guide and the output module. The precise interplay of these three spreads the light indoors.

1 Collect

The module for collecting sunlight features a high-precision sun tracker and short-focus lenses with high-efficiency fiber couplers. These are well protected in an aluminum housing and covered with a glass pane.

2 Guide

The sunlight is coupled into the latest generation of glass fibers. The fiber optic cables transport the natural light over several meters in and through the property, while maintaining both a high light quality and a high light intensity.

3 Shine

What emerges from a thin cable can be individually adjusted via the output module. From spots to lamps to customer-specific outputs with a modern or traditional design, there are almost no limits.

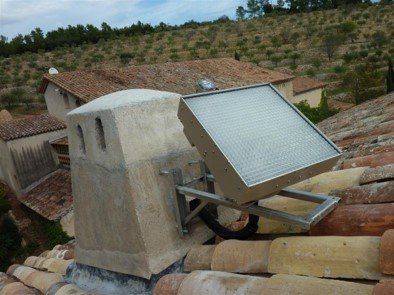

One or more Sollectors are placed on or in the immediate vicinity of the building where they have good access to direct sunlight. The Sollector has a modular design and each fiber optic cable can have an individual length. In this way you can meet your need for natural light in the best possible way. This means you can optimize both the number of cables and their length for each installation.

The advantages at a glance

spectrum

a light spectrum almost identical to natural sunlight

colour

a natural and flicker-free color reproduction

CO2 and energy

environmentally friendly by CO2-Reduction and energy saving by using the natural resource of sunlight


UV radiation

no harmful UV radiation and therefore no radiation exposure for skin and eyes

infrared radiation

no IR radiation and thus no heat input into your rooms, which means that less energy has to be used for cooling

health and well-being

sunlight is essential for our health! Support of circadian rhythms (internal clock), increase in productivity and performance

Application examples
